Motorized Ball Valve UPVC True Union
UPVC Motorized Ball Valves are available in size from 20mm to 50mm. They are used in variety of applications including Water and Chemicals. True Union Ball Valves are extemely easily to install and maintain. These electric actuated upvc ball valves are available in PN10 and PN16 versions. Our electric actuator can be easily mounted on CEPEX True Union Ball Valves for Industrial applications.
Building Automations
Motorized Ball Valve UPVC are used in Domestic Water Management. In Building automation where the water pressure is between zero and 3 Bar, this automated valve becomes economical
Chemical Industries
UPVC Automatic Ball Valves are used in Chemical Industries. Few chemicals cannot be controlled with metal valves. Flow control or dosage of chemicals is possible through Modulating Valves.
Water Treatment
Motorized UPVC valves are used in RO water treatment plants. Our electric-operated UPVC Ball Valves can be used to control flow or feed in various processes in RO water Treatment Systems.
Farm Automations
UPVC Ball Valves with Electric Actuators play a vital role in farm automation. At Sensoware, we work with cutting-edge technology, such as a cloud IOT platform and Solar Power, to empower our farmers. All this is affordable.

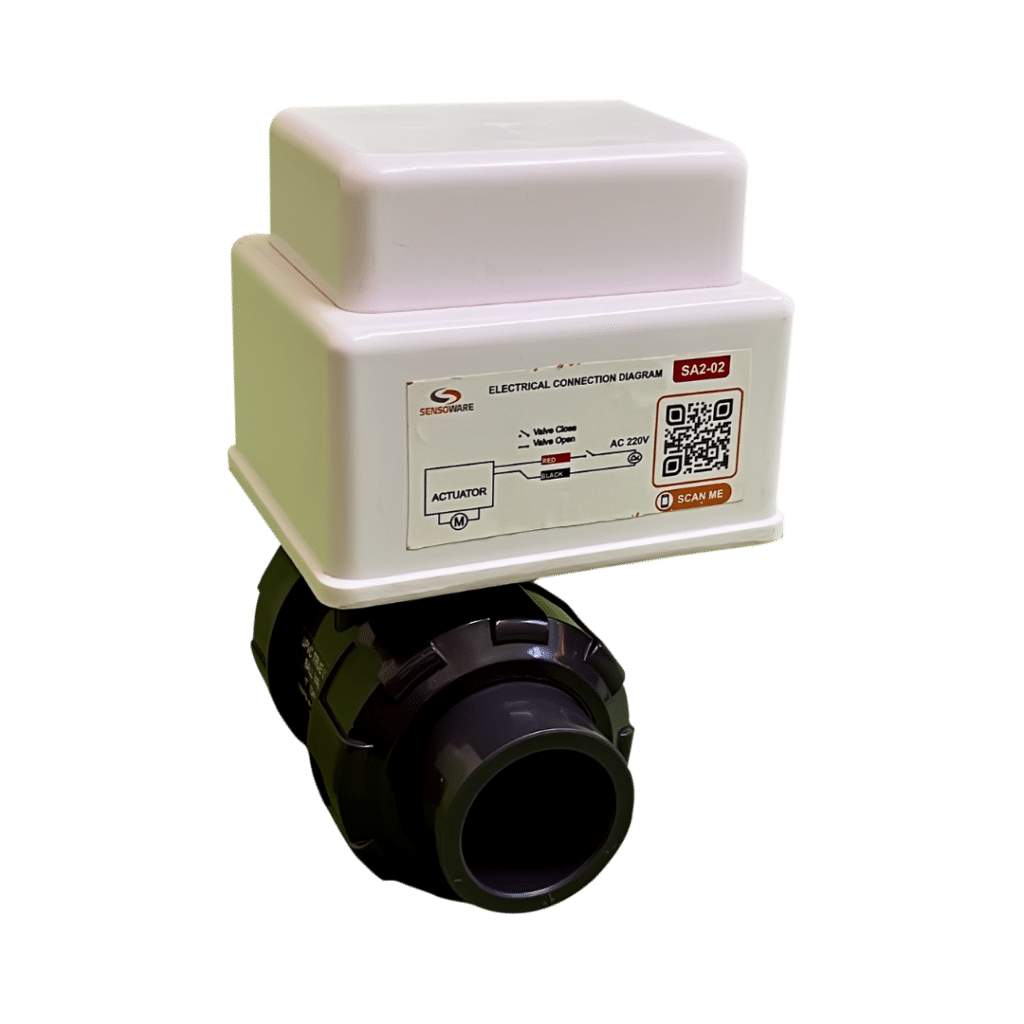

Motorized Ball Valve UPVC – 25mm
A 1-inch motorized UPVC ball valve is a compact, durable, and corrosion-resistant valve designed for automated flow control in various applications. Made from UPVC (Unplasticized Polyvinyl Chloride), it offers excellent chemical resistance, making it ideal for water treatment, chemical handling, and irrigation systems. The electric actuator allows for remote and precise control of the valve, enhancing system efficiency and reducing manual intervention. Its lightweight design and reliable sealing make it a cost-effective solution for both residential and industrial use.
Specifications
Video
|
Size |
25mm / 1 inch |
|
Material |
UPVC |
|
Voltage |
12V / 24V DC / 220V AC |
|
Function |
ON/OFF |
|
Feedback |
Optional |
|
Operating Speed |
3~5 Seconds |
|
Temperature |
60° C |
|
Number of ports |
2 way |
|
End Connection |
Socket Ends |
|
Pressure rating |
PN10 |

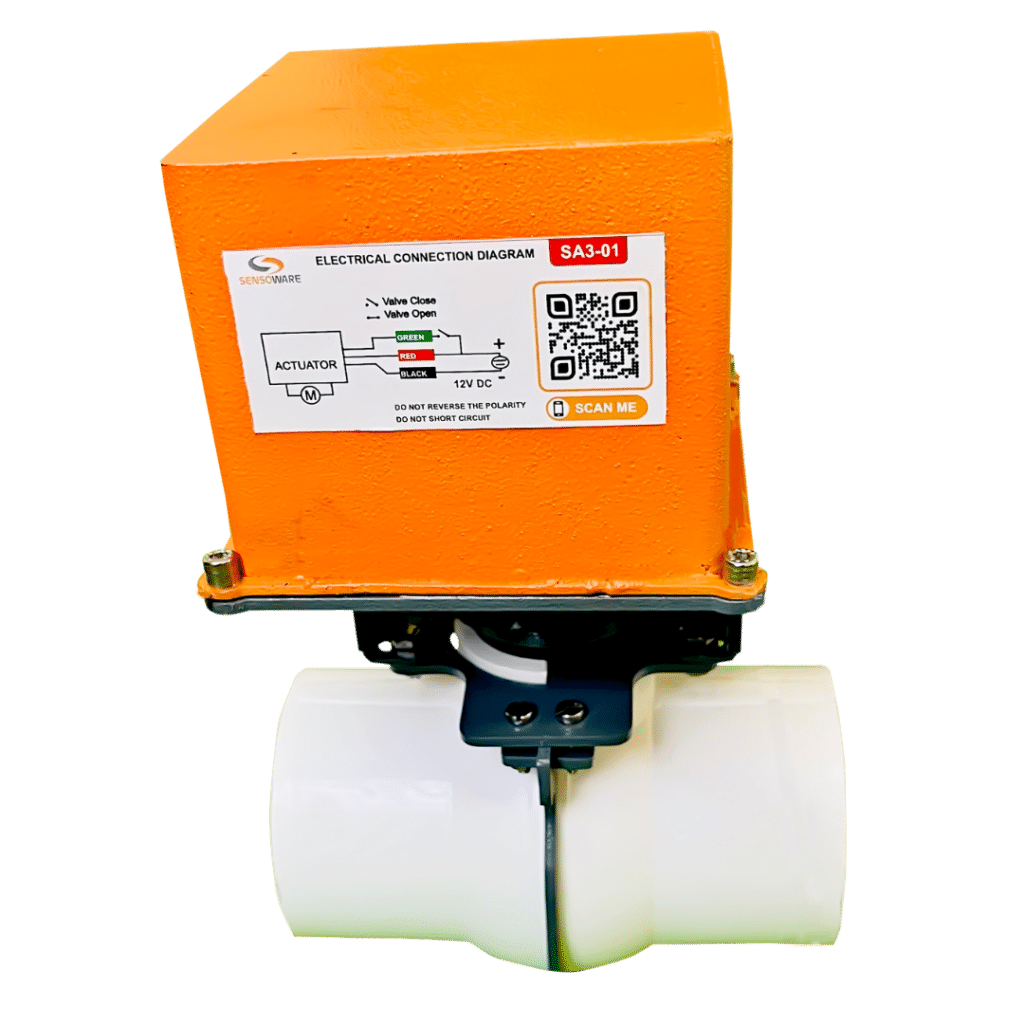

Motorized UPVC Ball Valve – 50mm / 2 inch with manual override
Motorized Ball Valve UPVC is used for low pressure water management. It is available in various voltage options like 12V DC, 24V DC or 220V AC.
Specifications|
Size |
50mm / 2 inch |
|
Material |
UPVC |
|
Number of ports |
2 way |
|
Voltage |
12V / 24V DC / 220V AC |
|
Function |
ON/OFF |
|
Feedback |
Optional |
|
Operating Speed |
60 seconds |
|
Manual override |
Optional |
|
End connection |
Socket end |
|
Temperature |
Ambient |
Video

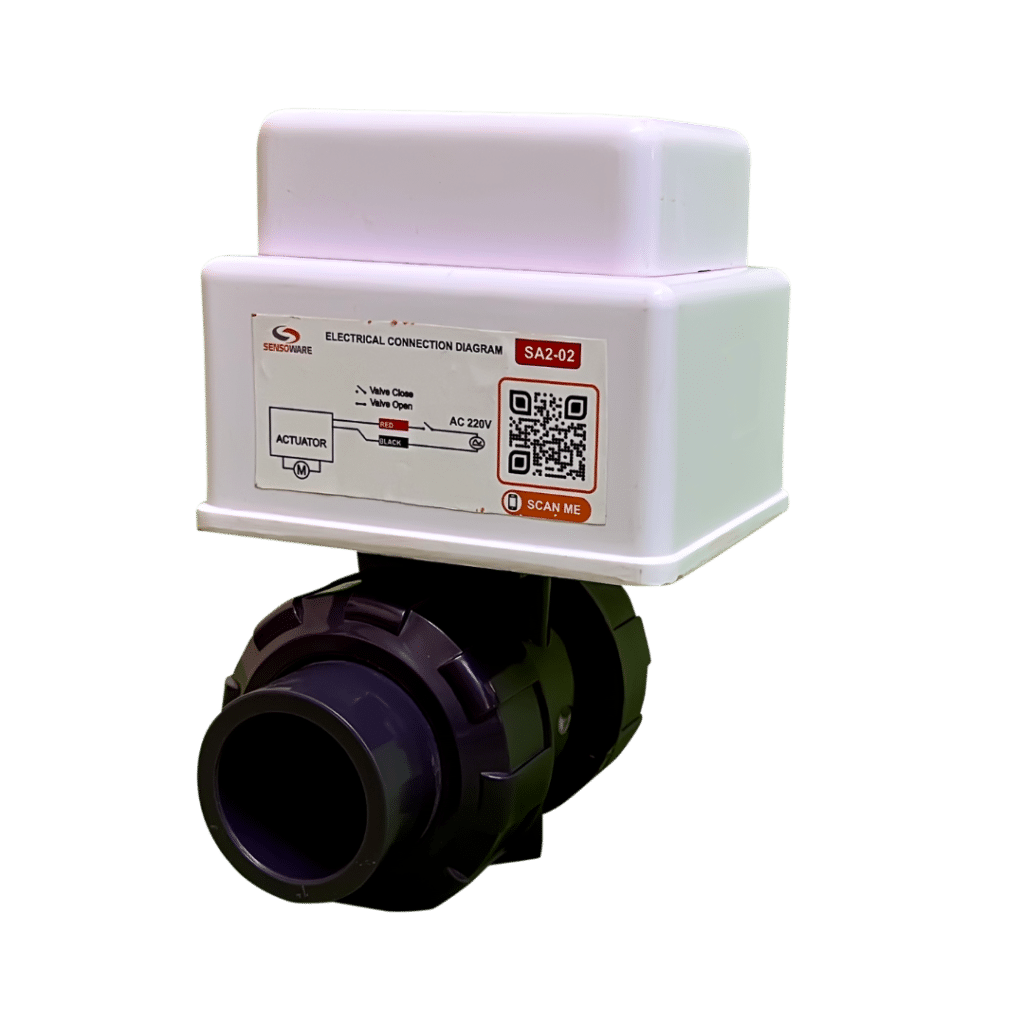

Motorized Ball Valve UPVC True Union without Manual Override – 25mm
Motorized Ball Valve UPVC is used for low pressure water management. It is available in various voltage options like 12V DC, 24V DC or 220V AC.
Specifications
| Size | 25mm / 1 Inch / True Union Ends |
| Material | UPVC |
| Voltage | 12VDC / 24VDC / 220VAC |
| Function | ON/OFF |
| Feedback | Optional |
| Operating Speed | 3 – 5 Seconds |
| Temperature | Ambient |
| Number of Ports | 2 Way |
Browse Related Products
Motorized UPVC Ball Valve True Union Ends – 50mm / 2 inch with manual override
Video
Motorized UPVC True Union Ball Valves offer excellent corrosion resistance, durability up to 10 Bar, and easy maintenance with their true union design. Ideal for automated systems, they provide precise flow control, are lightweight and cost-effective, and reduce leakage risk, making them perfect for industrial and chemical applications.
Specifications| Size | 50mm / 2 Inch / True Union Ends |
| Material | UPVC |
| Voltage | 12VDC / 24VDC / 220VAC |
| Function | ON/OFF |
| Feedback | Optional |
| Operating Speed | 60 Seconds |
| Temperature | Ambient |
| Manual Override | Optional |
| Standards | DIN, ASTM |
| Number of Ports | 2 Way |

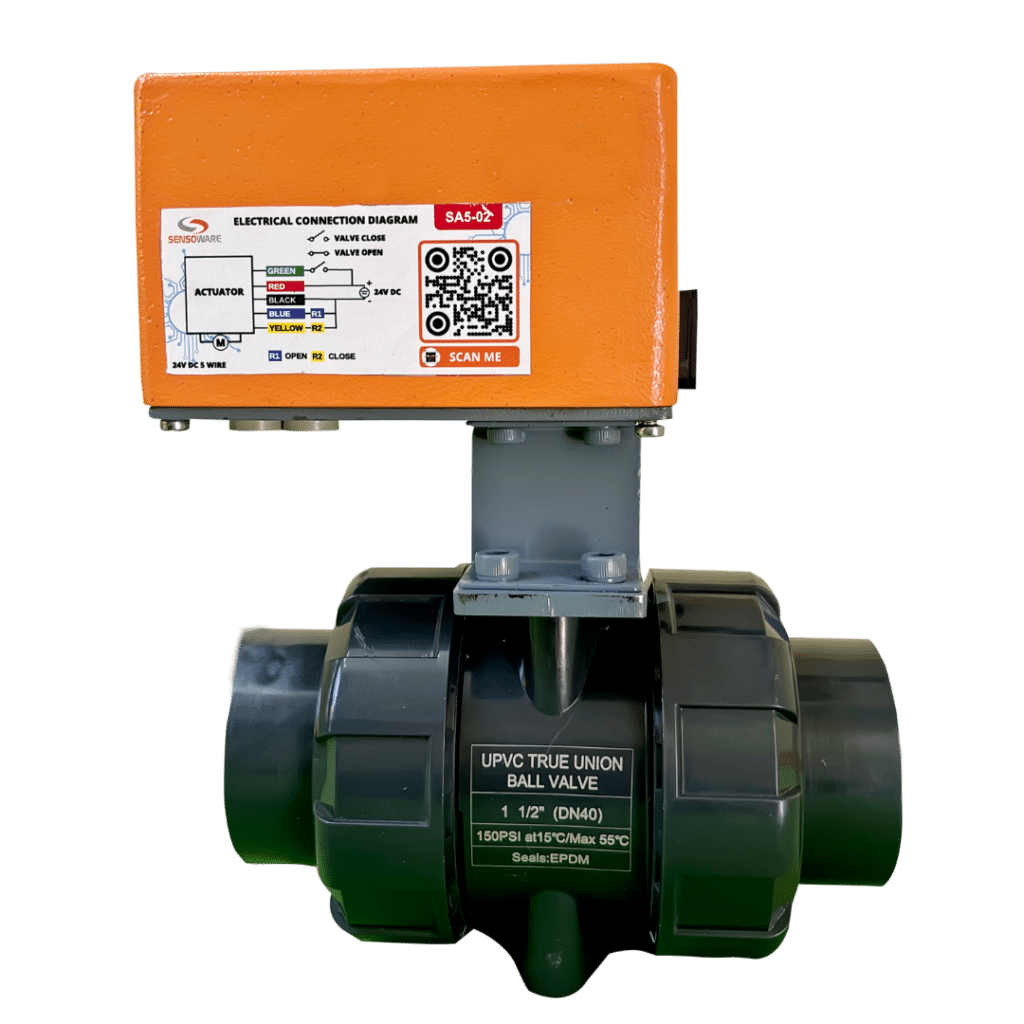

Electric Operated UPVC Ball Valve True Union Ends – 40mm / 1.5 inch
Electrically Operated true union valve is a type of valve that has a union connection, which allows for easy installation and removal without having to cut the pipeline. It typically consists of two halves with a union nut in the middle, allowing the valve to be disassembled.
Specifications
| Size | 40mm / 1.5 Inch / True Union Ends |
| Material | UPVC |
| Voltage | 12VDC / 24VDC / 220VAC |
| Function | ON/OFF |
| Feedback | Optional |
| Operating Speed | 60 Seconds |
| Temperature | Ambient |
| Manual Override | Optional |
| Standards | DIN, ASTM |
| Number of Ports | 2 Way |

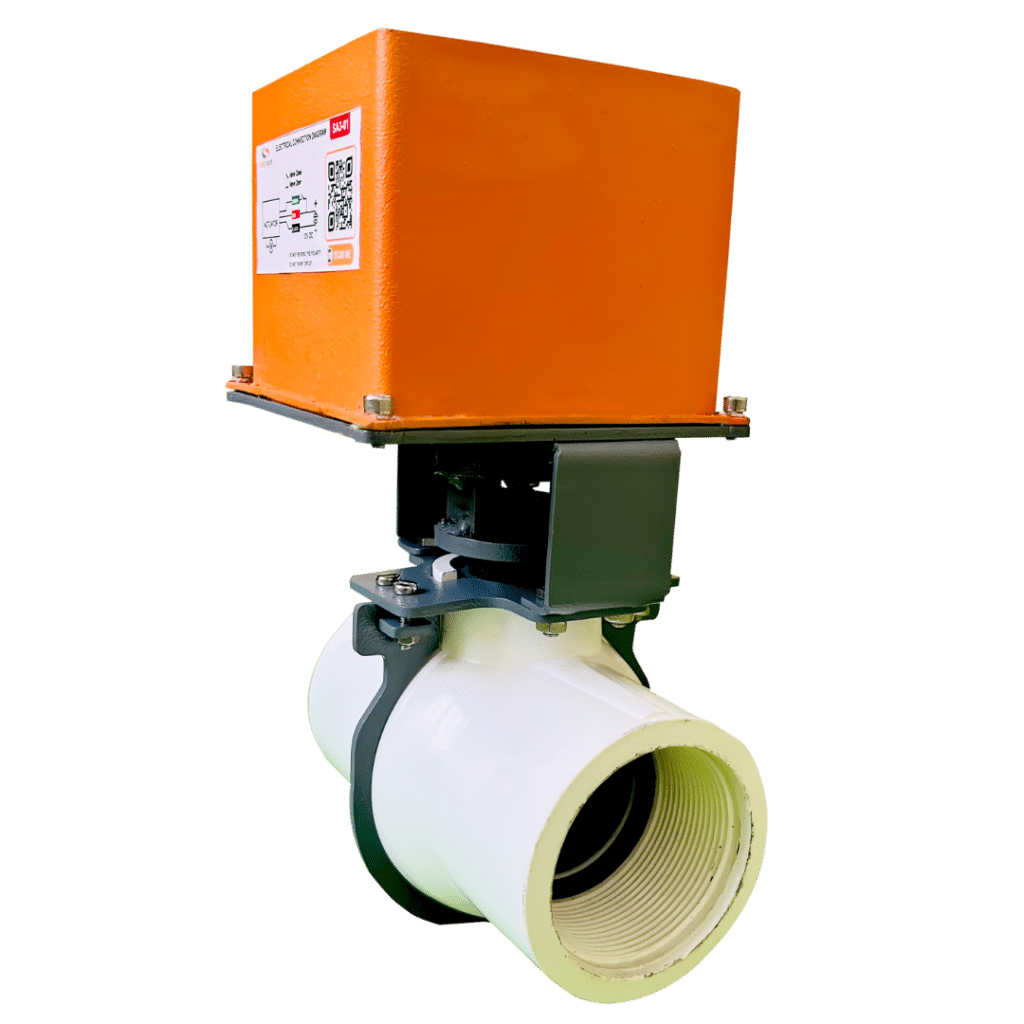

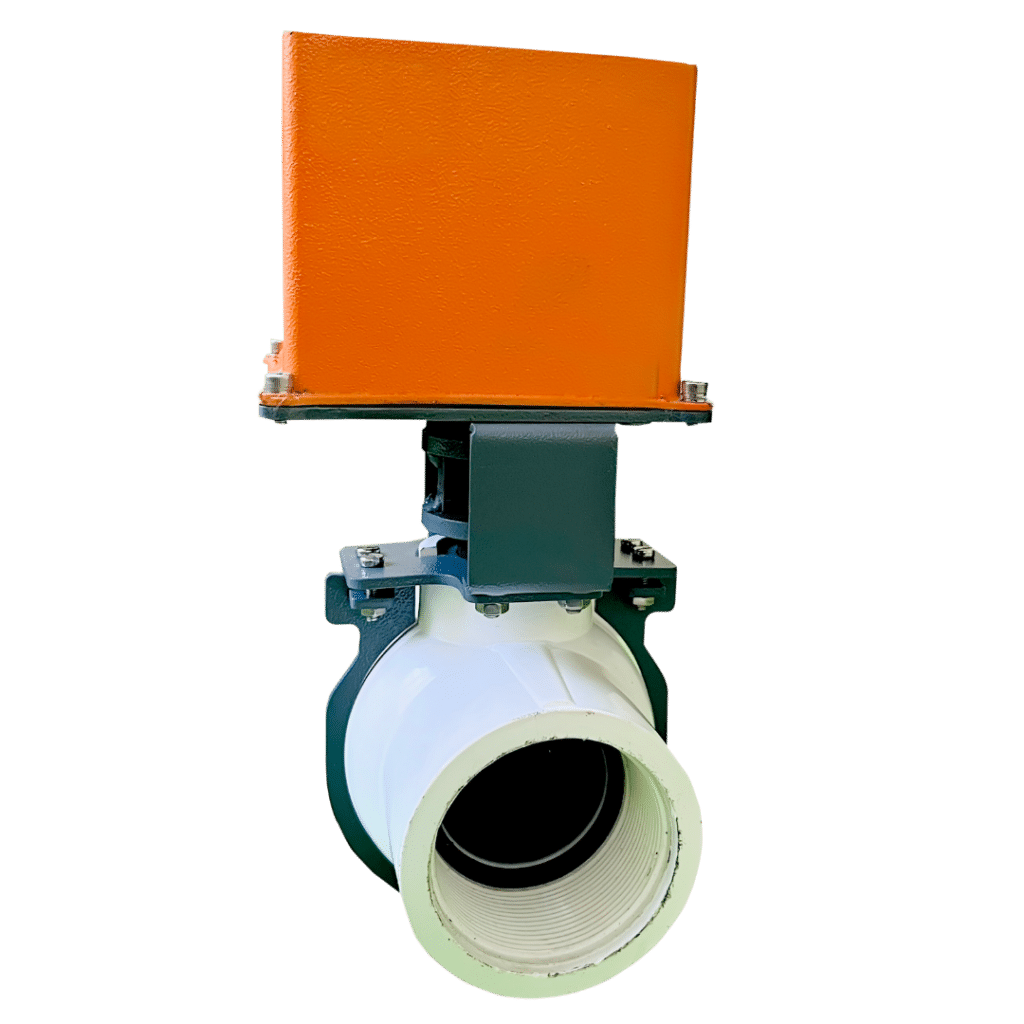

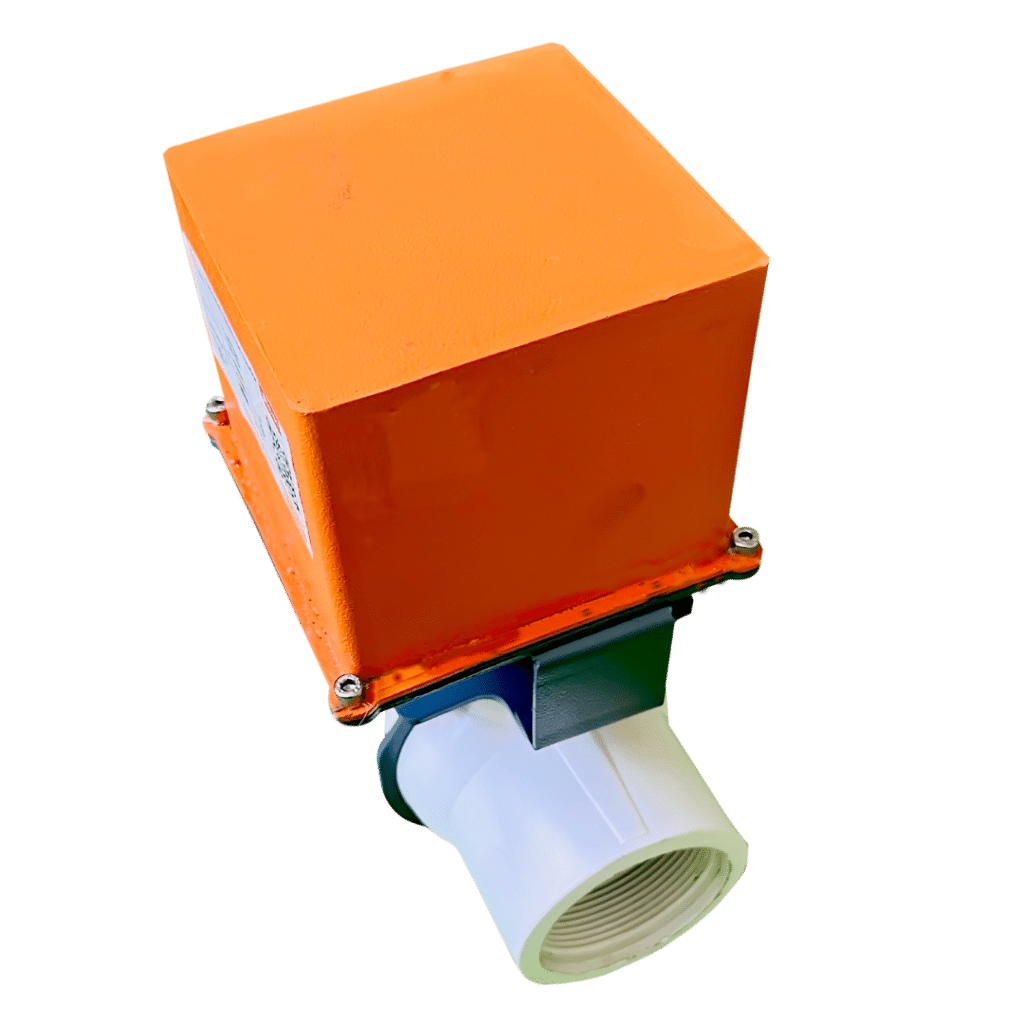

Automatic Ball Valve UPVC 2 inch without Manual Override – for Agriculture Automations
Our Automatic ball valve UPVC is available in Screwed ends for Agriculture automations for low pressure line. It is very cost effective and easy to install. It is available from 1 inch to 4 inch without manual override versions. The voltage options are available in 12V DC and 24V DC. AC220V on request.
Specifications
| Size | 50mm / 2 Inch / Threaded Ends |
| Material | UPVC |
| Voltage | 12VDC / 24VDC / 220VAC |
| Function | ON/OFF |
| Feedback | Optional |
| Operating Speed | 60 Seconds |
| Temperature | Ambient |
| Number of Ports | 2 Way |
